2-1/2" Scale Li'l Lima Under Construction
Machining the Cylinders
-->Click on a thumbnail to view a larger image.<--

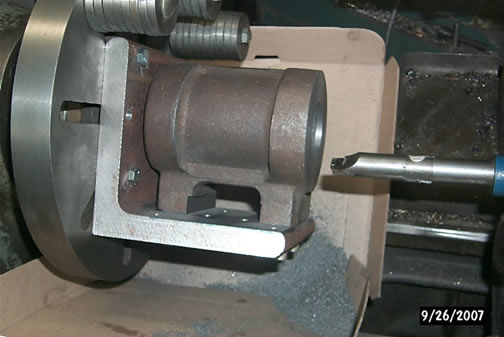

- Cylinder boring on lathe.
- Drilling cylinder mounting holes.

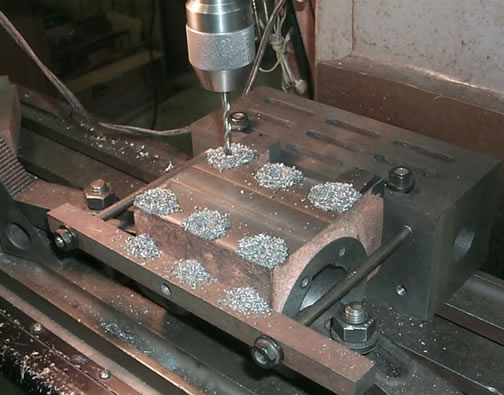

- Drilling/tapping valve chest mounting holes.

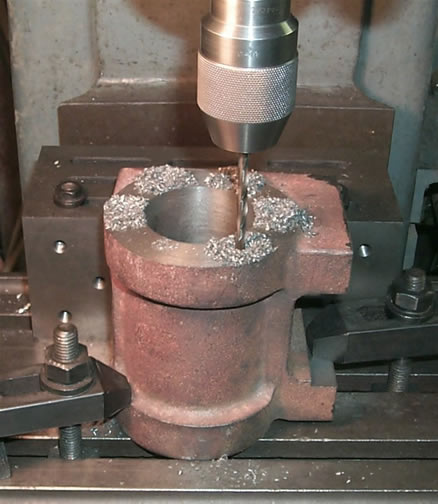

- Drilling/tapping cylinder ends.

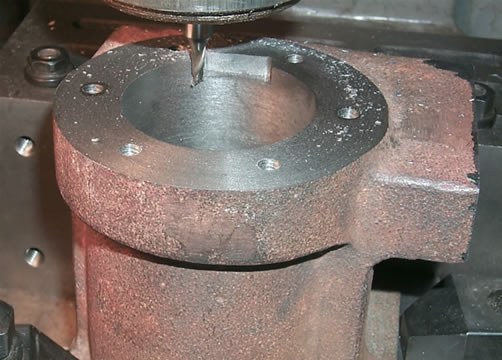

- Milling steam end passages.

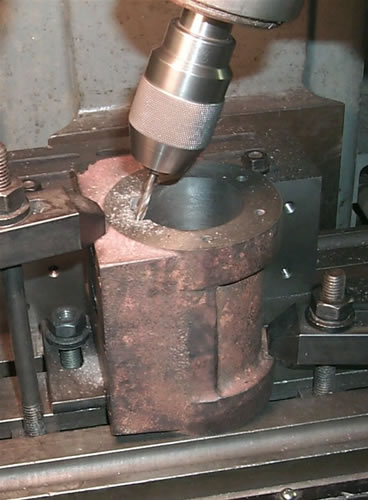

- Drilling steam passages, after starting holes with an end mill.

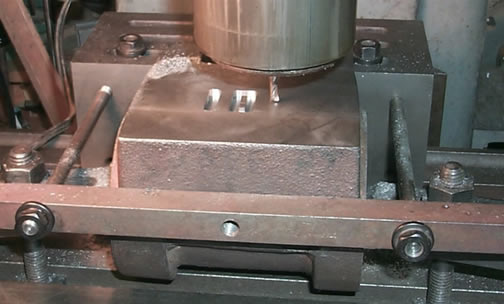

- Milling cylinder ports.
- Drilling valve chest end holes.

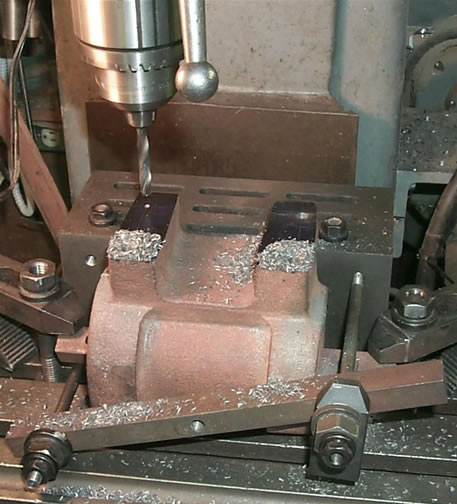

- Drilling valve chest mounting holes.

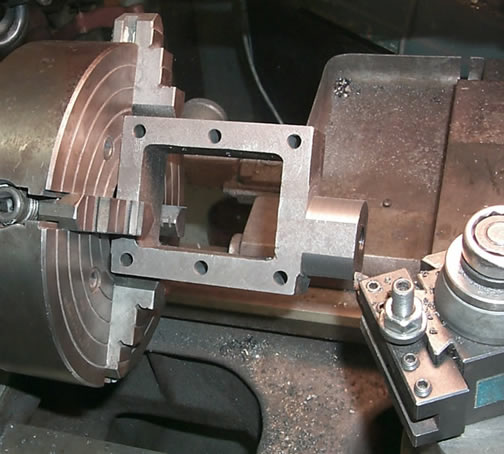

- Turning round valve chest spigot on lathe.
- All of this work was done using a homemade DRO, that's why no jigs are needed.
